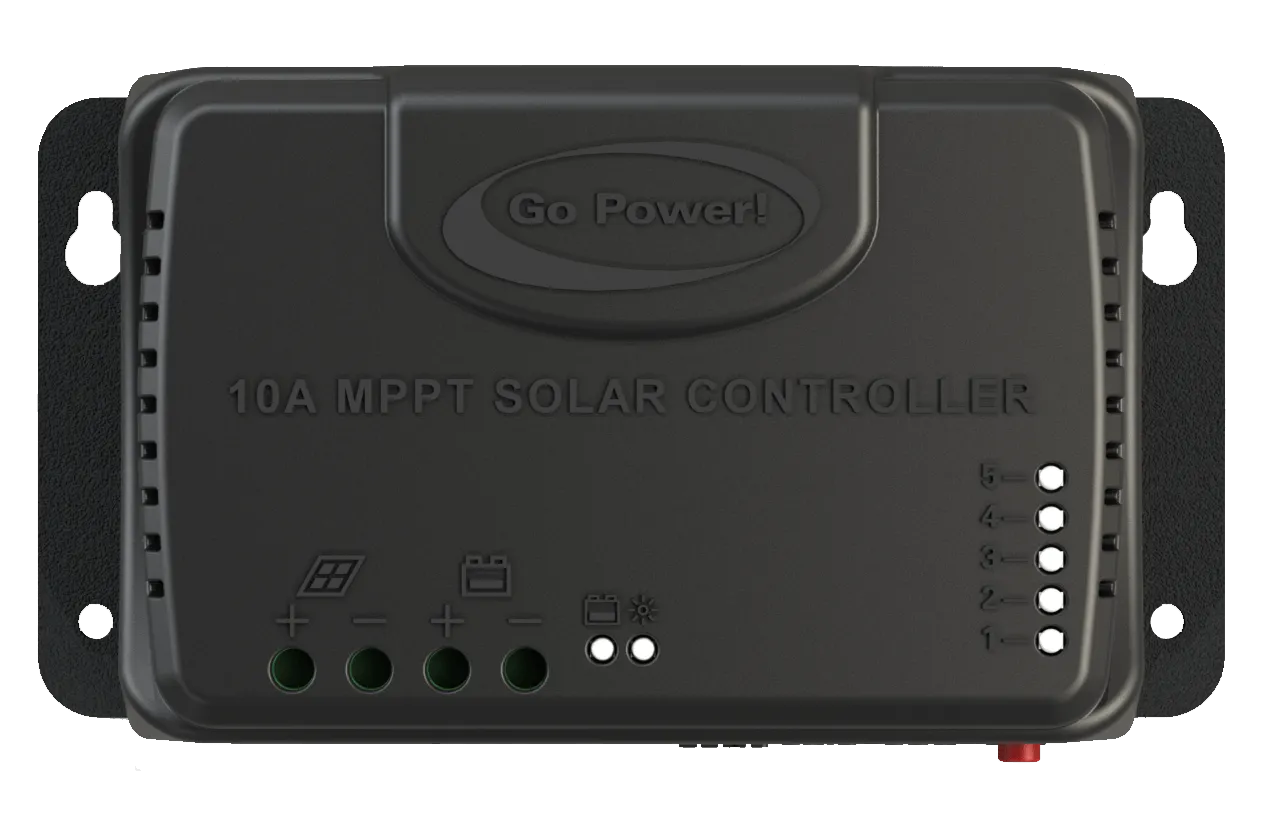

Model: GP-RVC-MPPT-10

An RV-C capable 10 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.

Features:

• Easily integrates into onboard communications (RV-C) systems
• Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 4 battery charging profiles.
• The most efficient MPPT controller for RVs
• Compatible with all battery types, including Lithium
• Maximizes all power from your solar modules
• Stackable: add additional controllers to expand your solar array
• Optional Bluetooth® remote
• 5-year warranty

Optional Accessories:

• Surface-mounted remote display; shows the charge current to the battery, and battery voltage - ()
• Bluetooth® Wireless Technology; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view





  SPECIFICATIONS:

  SPEC	PARAMETERS
  System Voltage	12V
  No-load Loss	8ma
  Max PV Input Voltage	<100V
  Rated Current Charge	10A
  Max PV Input Power	150W
  Battery Type Selection	GEL	AGM	FLOODED	LiFePO4	Custom
  Equalize Charge Voltage	–	–	14.9V	–	8.32V
  Bulk-Absorption Voltage	14.1V	14.4V	14.4V	14.4V	8.32V
  Float Charge Voltage	13.7V			14.0V	8.32V
  Recharge Voltage	13.2V				8.32V
  Over-Discharge Return Voltage	12.6V			12.2V	8.32V
  Under-Voltage Warning Level	12.0V				8.32V
  Over-Discharge Voltage	11.0V				8.32V
  Operation Temperature	-35°C ~ 45°C
  Dimensions	6.1 in x 3.3 in x 1.8 in (155mm x 86mm x 45.6mm)
  Weight	0.67lbs (300g)
  IP Protection	IP30
  Communication	RS485, RV-C
  Operation Altitude	< 3000M
  Warranty	5-years
