Overview

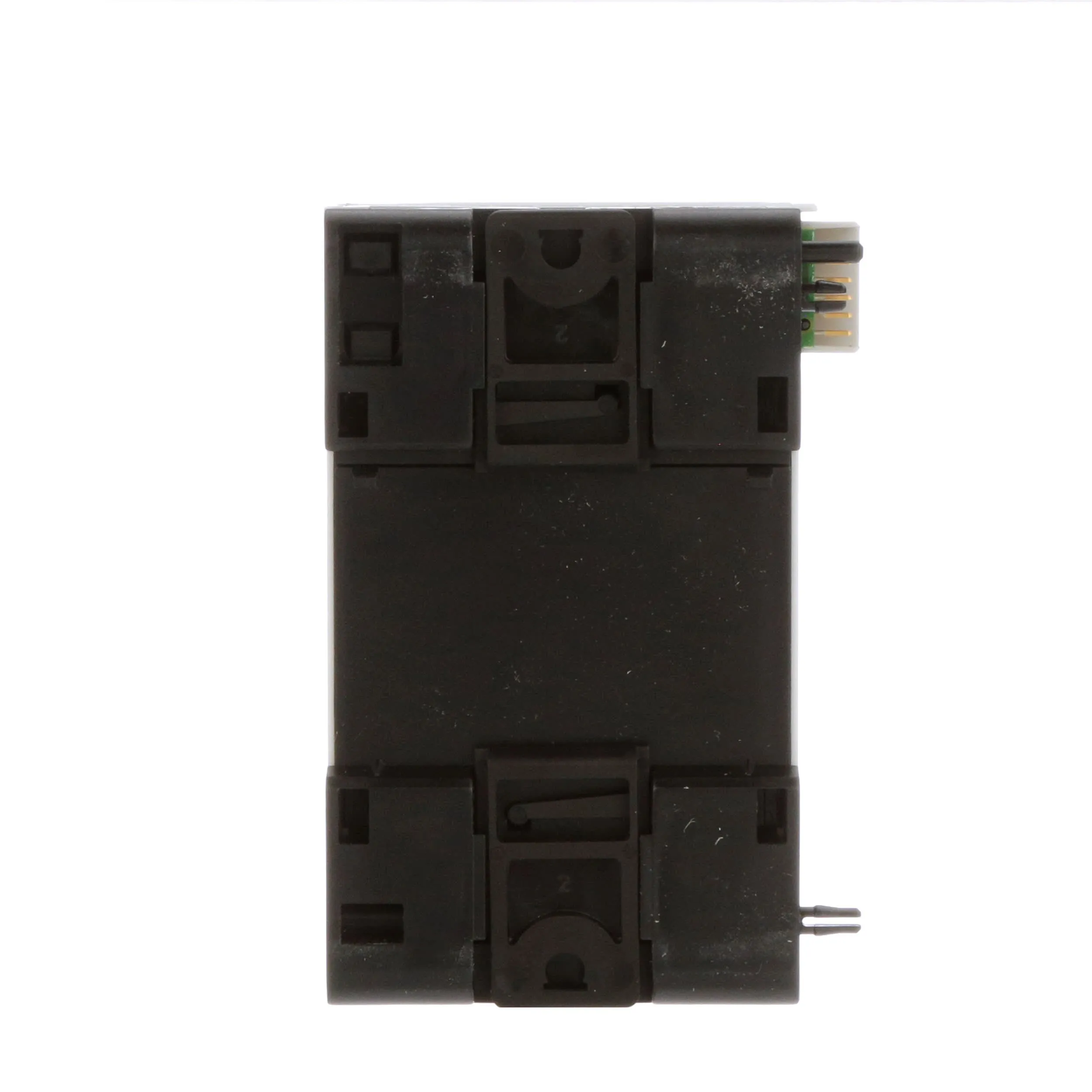

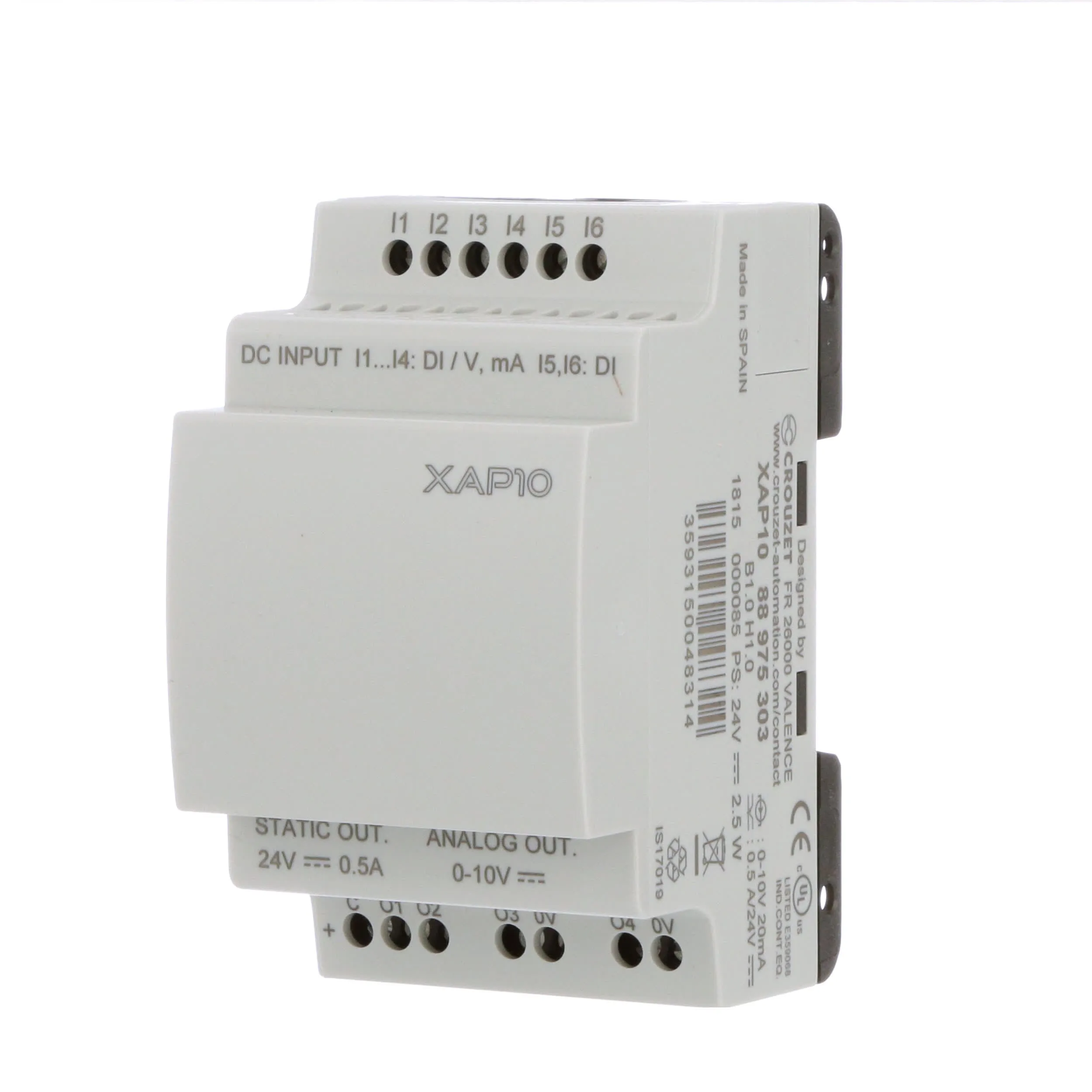

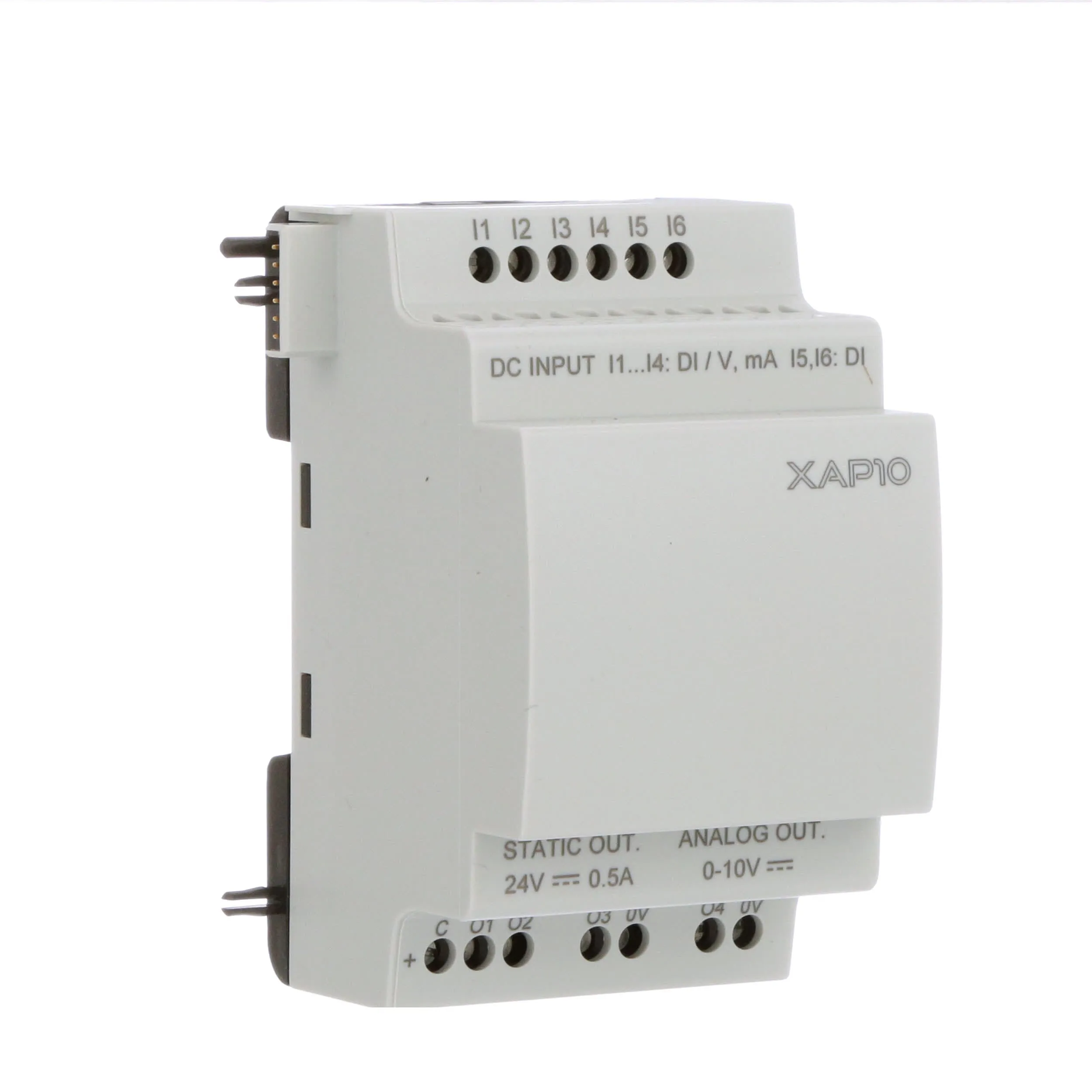

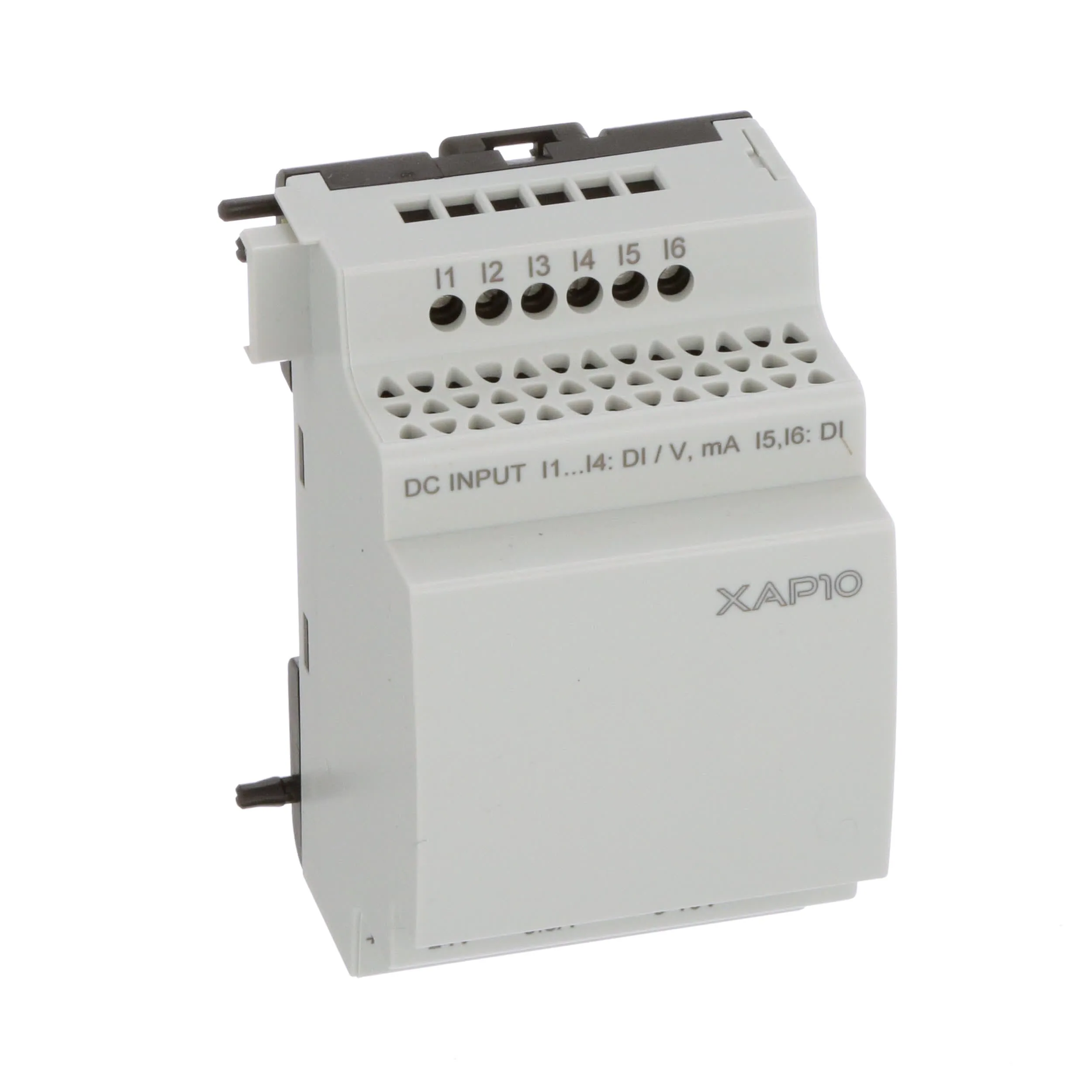

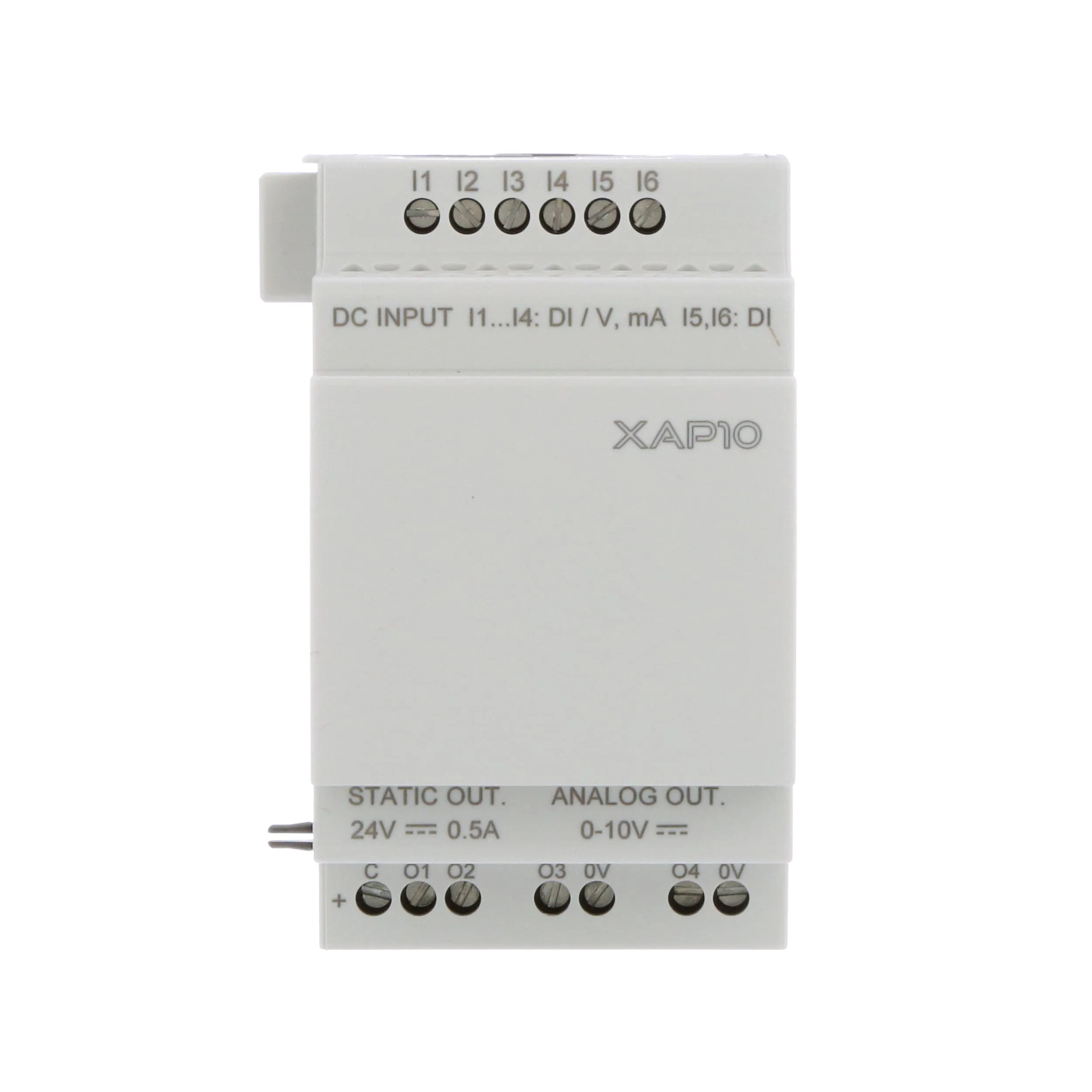

Crouzet MilleniumEVO — XAP10 10 I/O Analog Expansion:
Now it's possible to connect PC and Millenium EVO without a cable to read and write your programs. Edit programs and control Millenium EVO from the safety and comfort of your desk. Visual programming and vast of pre-programmed function blocks to drag and drop into your application, make the new version of Crouzet Soft the most intuitive and easiest to use, even for first-time users.
Expansion Features:
Analog Expansion with 6 DI (4 AI) and 4 DO (2 PWM)
12 bits for 0-10 V & 11 bits for 4-20 mA
Programmable PWM outputs from 0-100%
Can be used twice to reach 44 I/Os configuration
Power supply by the controller
MilleniumEVO Features:
Up to 44 I/Os - 16 DI (4 HighSpeed / 8 AI) - 8 DO
Wireless programming & Control with Bluetooth Interface and Crouzet Virtual Display
Modbus RTU Network (Slave)
Local datalog management
Up to 1000 programing blocks with intuitive Crouzet Soft to go from simple to complex applications
Measure and record key parameters of your installation
Periodically receive datalogs in .csv file, by e-mail, or by FTP*
Use Bluetooth technology to save time and easily program difficult to access controllers
View front control face in real-time and change available parameters
Program in a safe and comfortable environment, away from equipment and hardware
Reduce risk of operator errors
Cost-efficient solution for simple applications that eliminates the need for expensive HMIs
Easiest and most intuitive visual programming software
Twice as much memory capacity than competitors (up to 1000 function blocks)
Ready to configure communication protocols
Supports complex data processing with its 32-bit capacity
Allows you to combine function block and SFC programming
Organize your program with custom icons, images and text comments
Create your own macros or use pre-programmed application blocks
