Product Details
＋

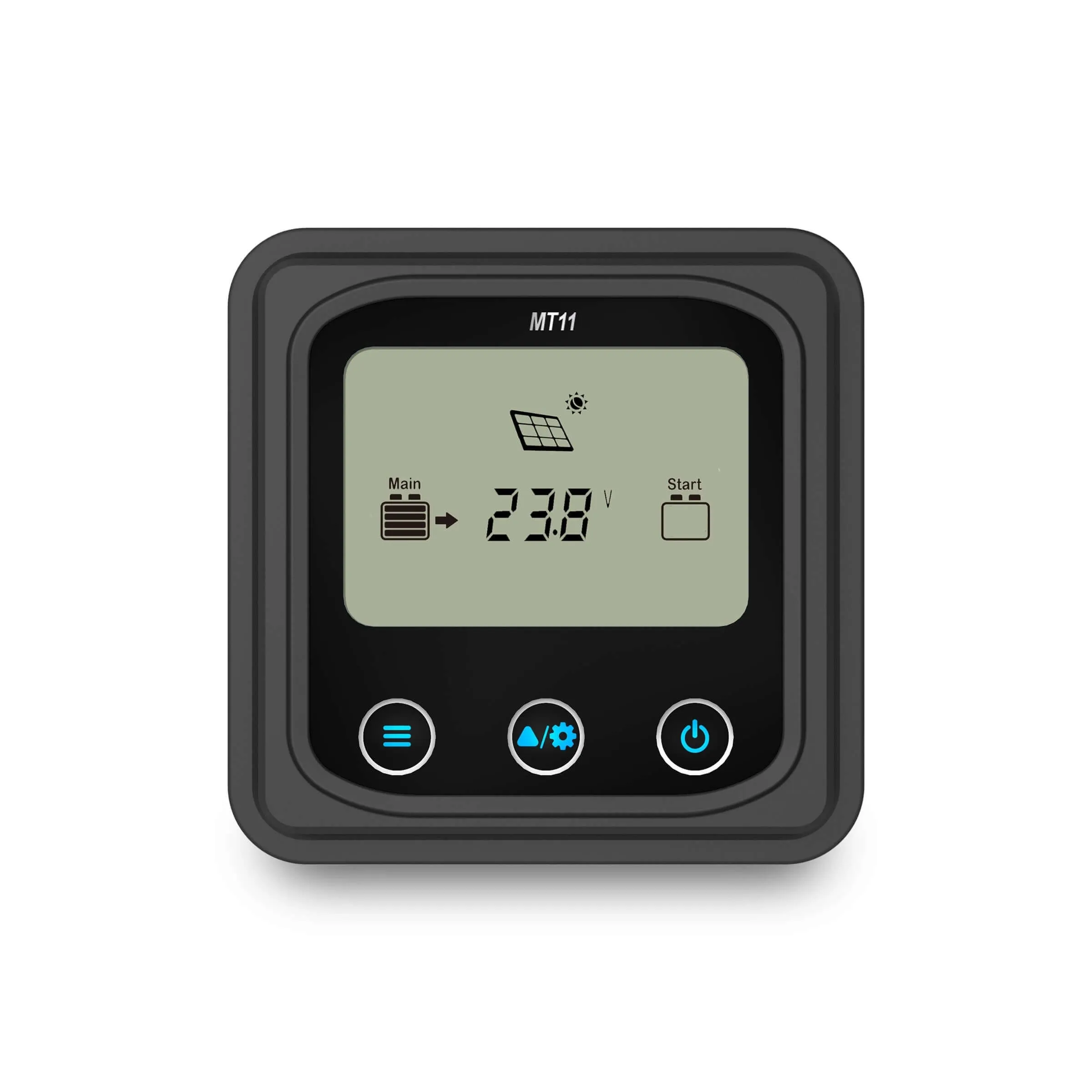

The MT11 remote meter, using the DuoRacer series controllers, can monitor the controller’s running data and working status.
The MT11 remote meter is an accessory that is compatible with the DuoRacer series controller. It can monitor the running data and working status of the controller via the remote meter. The remote meter can browse the controller’s parameters, set the battery type and temperature unit, and clean the generated energy. It is suitable for RV, Camper, Boat, and so on.
Downloads:
Additional Information
| Apply to model | DRN series |
| Self-consumption(Power on) | 13mA/5Vdc |
| Self-consumption(Power off) | 4mA |
| Communication way | RS485 |
| Communication port | 3.81-4P |
| RS485 cable | CC-RS485-RS485-3.81-4P-150(1.5m) |
| Environment temperature | -20℃～ 70℃ |
| Storage temperature range | -20℃～ 70℃ |
| Enclosure | IP20 |
| Dimension | 98.4×98.4mm |
| Base cover dimension | 114×114mm |
| Weight |
0.11kg |
