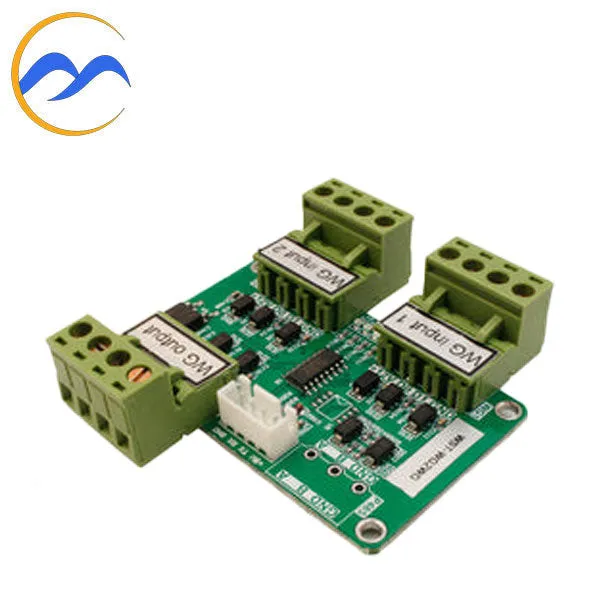

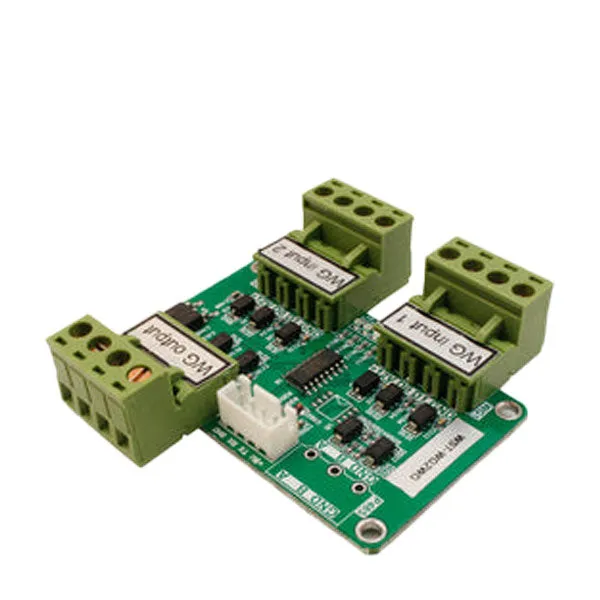

This Malibu Wiegand Parallel Splitter wires two RFID Card readers in parallel. Connect multiple RFID readers together. A low-cost indoor Wiegand splitter to change a 2-channel Wiegand input to a 1-channel output, or change a 1-channel input to a 2-channel output. The converter supports 2-way transmission, transferring Wiegand 26bit/34bit data and other Wiegand bit data for customized orders, and transferring 1CH, 2CH, and 3CH Wiegand to an optional RS485 communication.

ASCII (Decimal Number) output modes:

- WST-WG2WG-A26 WG26bit/WG34bit to WG26bit (8-digit decimal number)
- WST-WG2WG-A34 WG26nit/WG34bit to WG34bit (10-digit decimal number)

Hex Output Modes:

- WST-WG2WG-H26 WG26bit/WG34bit to WG26bit (3-byte hex number)
- WST-WG2WG-H34 WG26bit/WG34bit to WG34bit (4-byte hex number)

Specifications:

Wiegand Input	support Wiegand 26/32/34/35/36/37/40/42/44/66/80bit
Wiegand Output	Support Wiegand 26bit or 34bit, other optional
RS485 Communication Standard	9600, n, 8, 1
Transmit Distance	Max 100m
Support Reading Interval time	>150ms
Operating Voltage	DC 9V-24V (Wiegand output GND must connect with access control GND)
Consumption Current	Not more than 30mA
Operating Temperature Range	41-104F
Relative Humidity at 59F	80% / 77F 90%
Material	Plastic Shell
Color	Black
Size	64mm x 65mm x 35mm (2.52 in x 2.56 in x 1.38 in)
Net Weight	about 30g (1.06 oz)

Application:

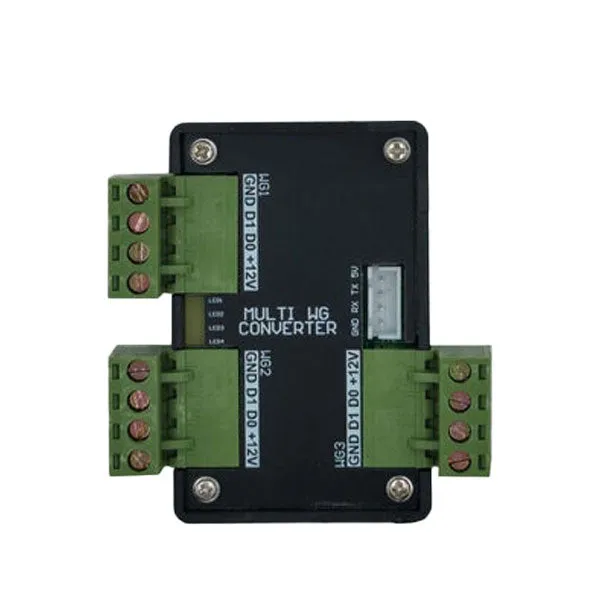

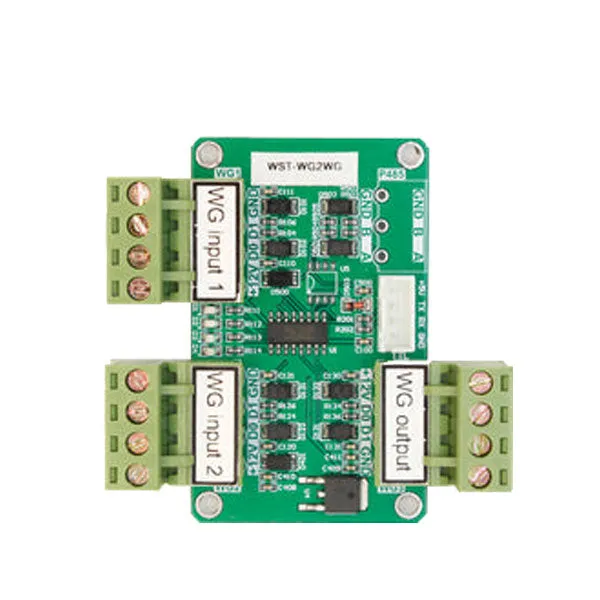

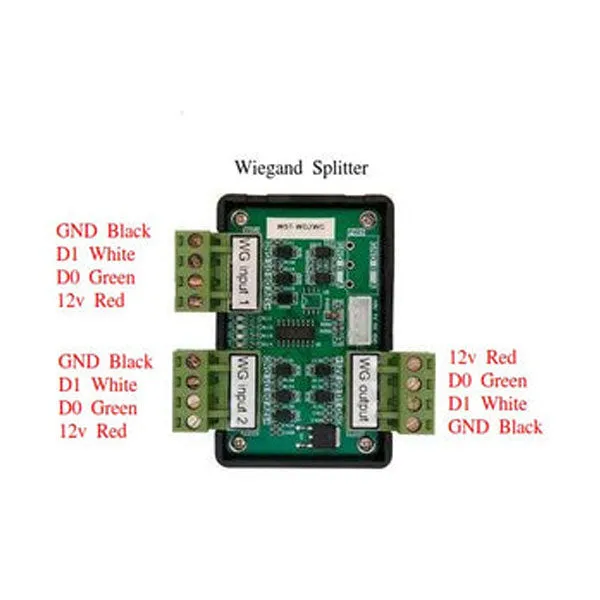

The standard mode of this converter supports 2CH Wiegand reader input (WG1 and WG2), and 1CH Wiegand reader output (WG3). A popular application for use in 4-door access control: some 4-door access controllers have only 1CH Wiegand interface for each door. When it is necessary to install 2 Wiegand RFID card readers at each side of the door, you can use this Wiegand to Wiegand converter as a communication splitter to change the 1CH Wiegand interface to 2CH Wiegand interface, so a 4-door access controller can connect 8 Wiegand RFID readers. Another typical application is to connect 1 Wiegand RFID card reader (1CH Wiegand output) with 2 access controllers, for example, 1 Wiegand RFID reader connects to an access controller Wiegand input interface and also connects to face identify machine Wiegand input interface.
