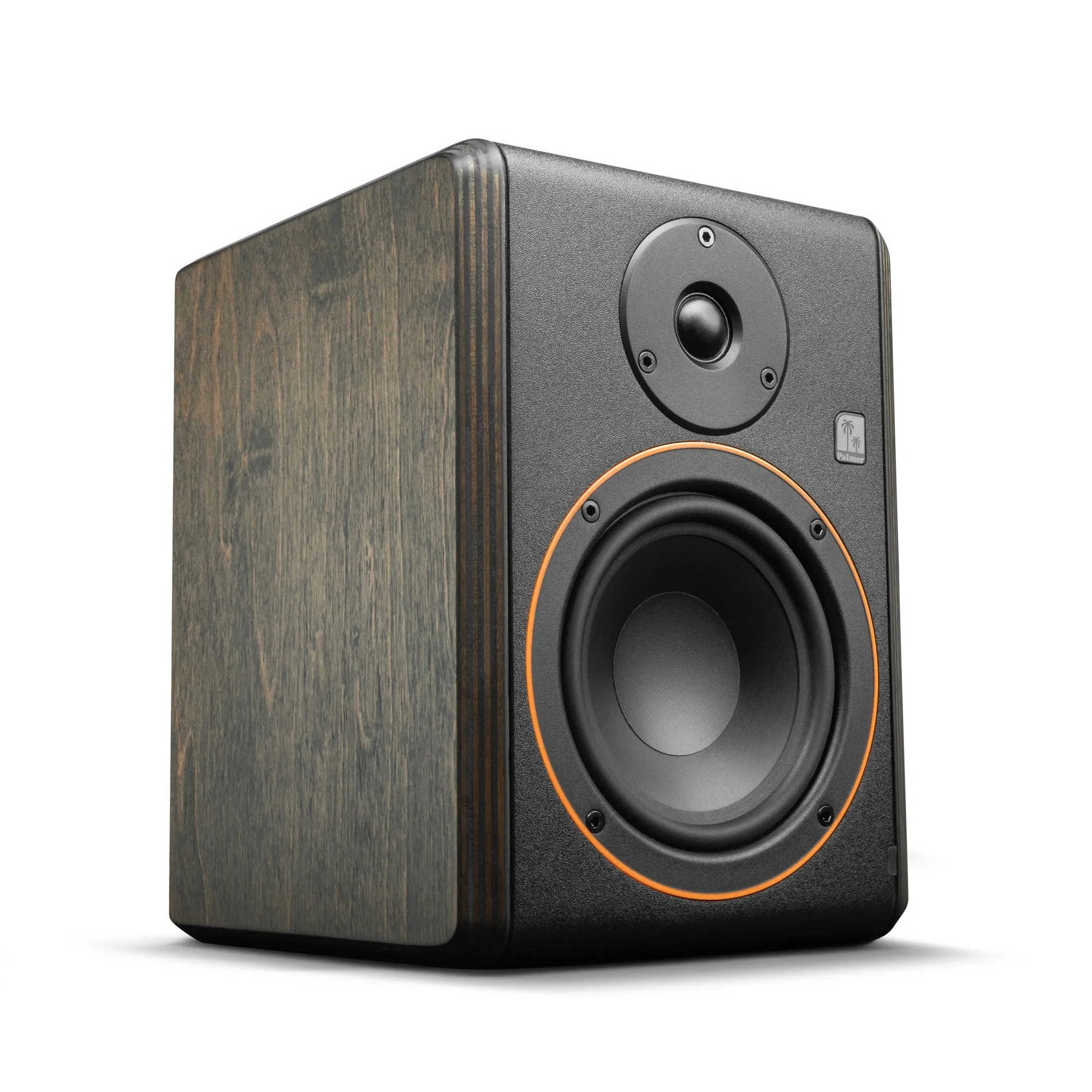

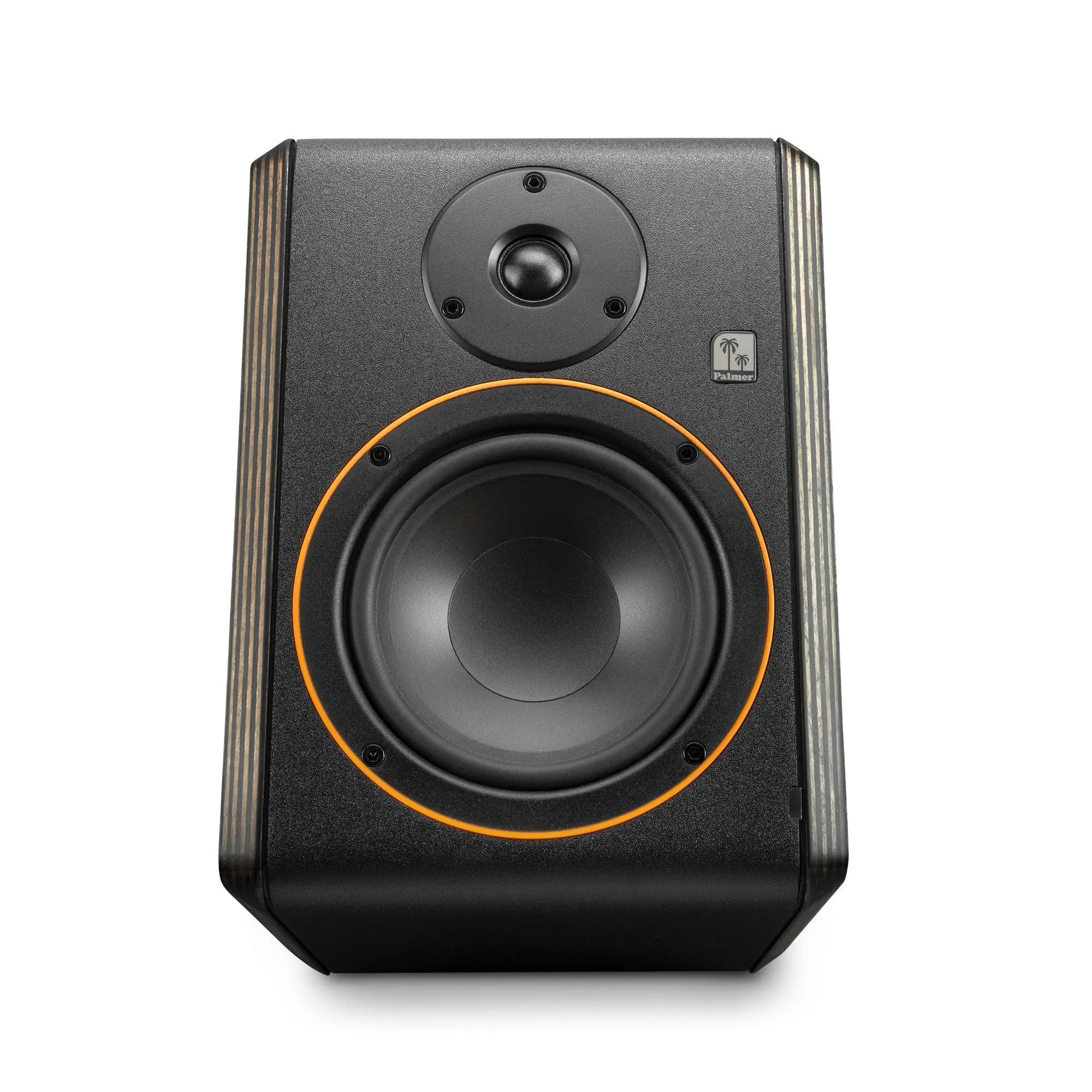

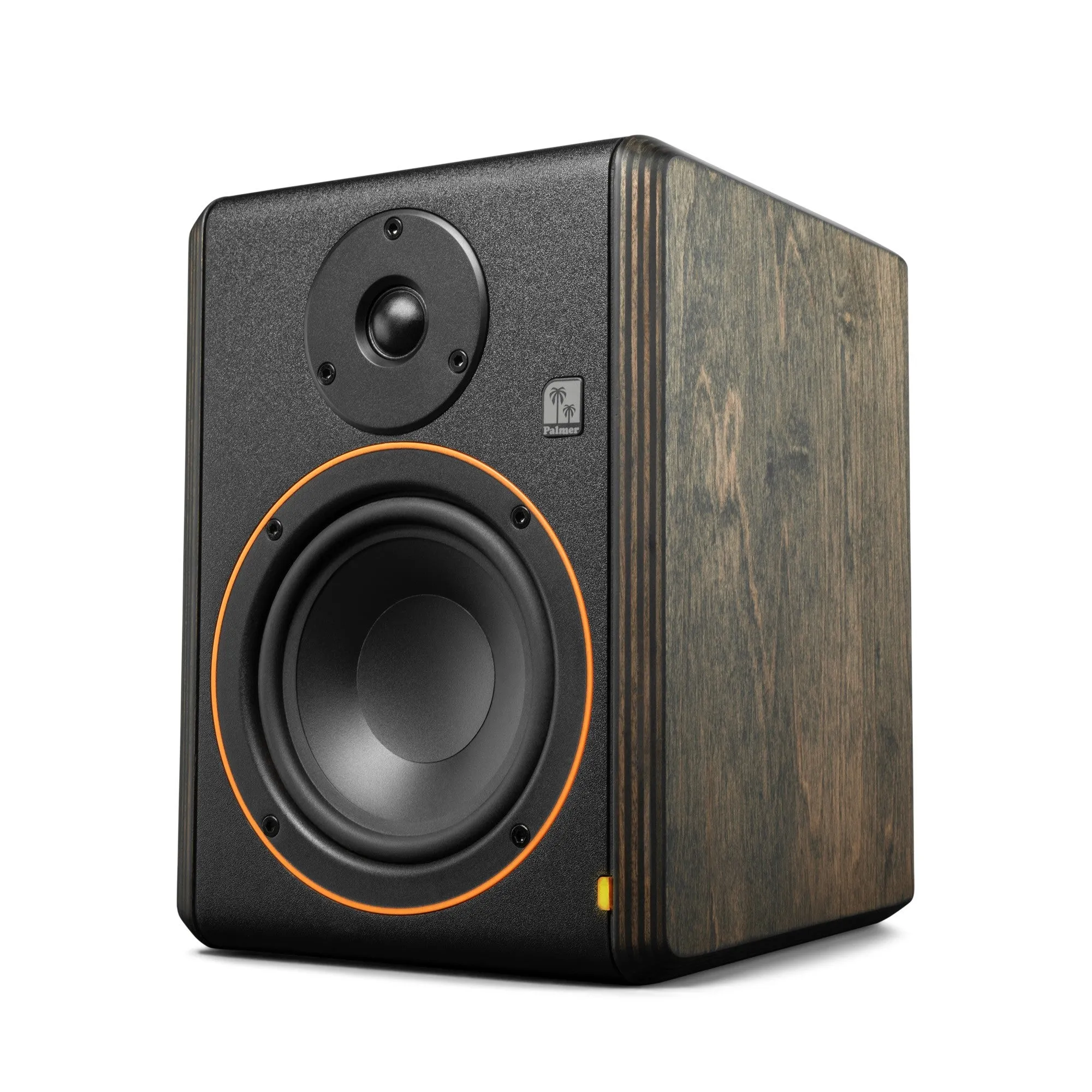

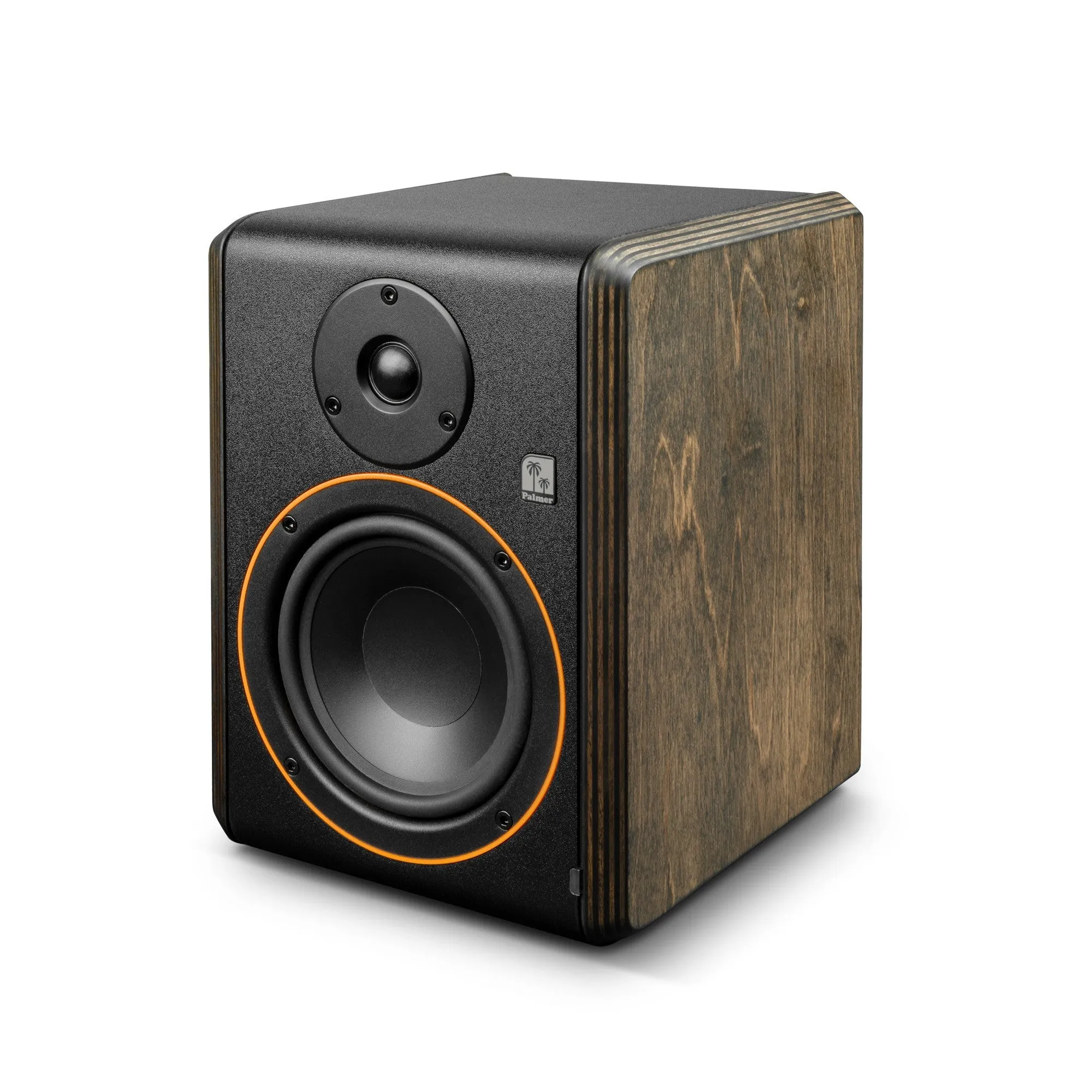

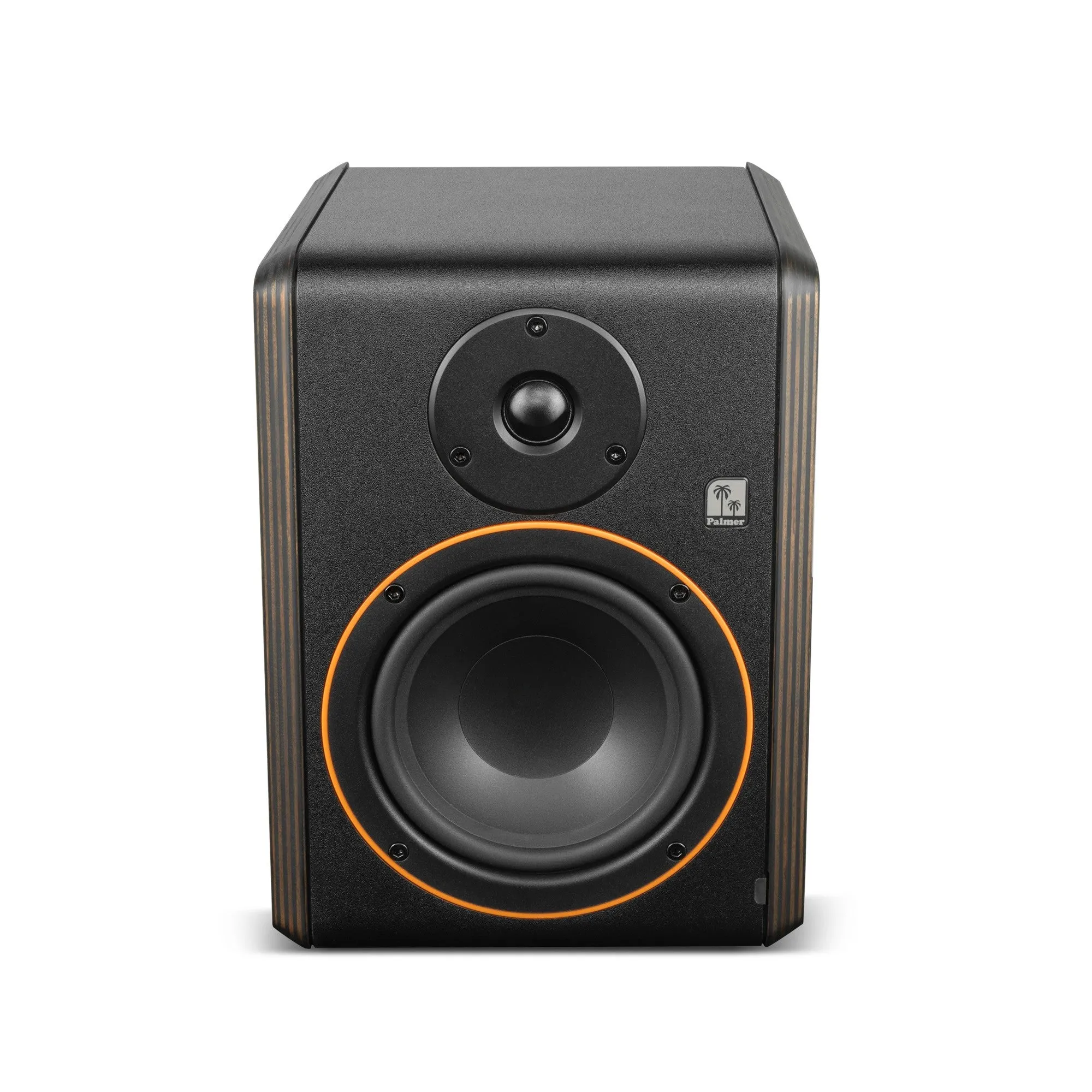

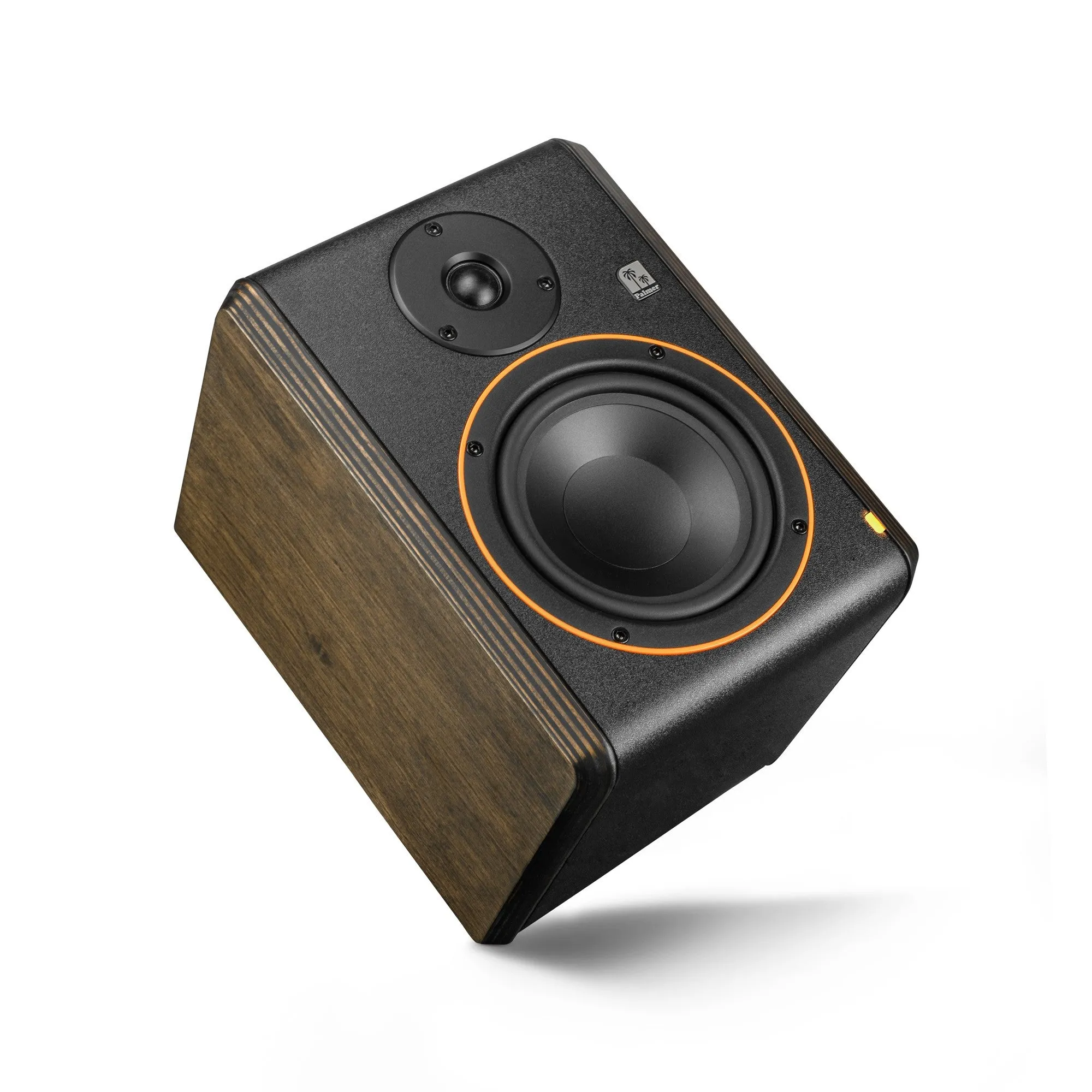

A basic requirement for any studio is that the mix is accurate and that it's reproduced with the highest possible dynamics and impulse fidelity. The STUDIMON 5 from Palmer is a reference-class nearfield studio monitor with a bi-amping power amplifier. Drawing on two 30-watt class-AB power amplifiers, the STUDIOMON 5 delivers incredible sound despite its compact design. The studio monitor is fitted with a magnetically shielded 5" woofer with rubber surround and a 0.75" tweeter with silk dome, and features a rear reflex aperture for optimal deep bass reproduction. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker's features. The elegant design of the STUDIOMON 5 seamlessly complements MONICON series products from Palmer.
- 5" woofer and 0.75" soft dome tweeter
- Bass reflex design
- 60-W RMS bi-amping power amplifier
- 70 Hz to 20 kHz frequency response

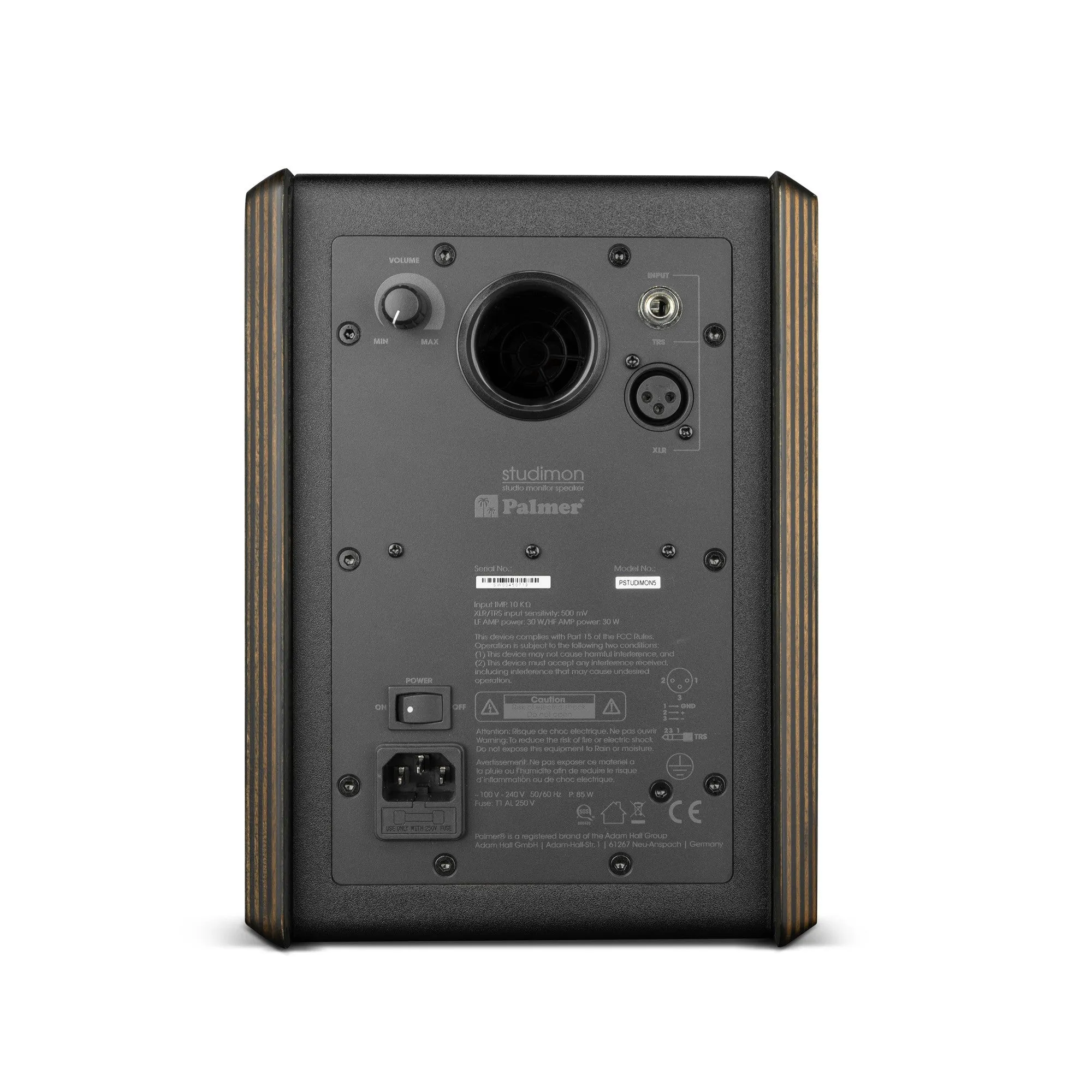

- Balanced XLR and 6.35 mm stereo jack input
- Compact design
- Elegant and robust housing
| Product type | Other Studio and Recording Equipment |
| Type | Studio monitor |
| Low/mid driver dimensions | 5 " |
| Woofer size | 127 mm |
| Woofer magnet | 80 mm Ferrit |
| Woofer brand | Custom-made |
| HF driver dimensions | 0.75 " |
| HF driver size | 19 mm |
| HF driver magnet | 28 mm Neodym |
| HF driver brand | Custom-made |
| Power amplifier (Class A) | Class A/B |
| Dispersion (H x V) | 120 ° x 120 |
| RMS | 2 x 30 W |
| Frequency response | 70 - 20.000 Hz |
| Crossover frequency | 2500 Hz |
| Max. SPL | 110 dBU @ 1 kHz dB |
| Signal-to-noise ratio | 85 dB |
| Protection circuits | Overtemperature , short circuit |
| Input impedance | 10,000 Ohm(s) |
| Controls | mains switch (on/off) , volume control |
| Indicators | orange (LED) |
| Line input connectors | 6.3 mm stereo jack (balanced) , XLR (balanced) |
| Operating voltage | Switching power supply |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Cabinet material | Birch Plywood , MDF |
| Housing Wall Strength | 15 mm |
| Cabinet surface | Laminated , stained |
| Cabinet colour | Black |
| Cabinet construction | Bass Reflex |
| Width | 190 mm |
| Height | 268 mm |
| Depth | 215 mm |
| Weight | 3,95 kg |
| Accessories (included) | Power cord |
