Product Details
＋

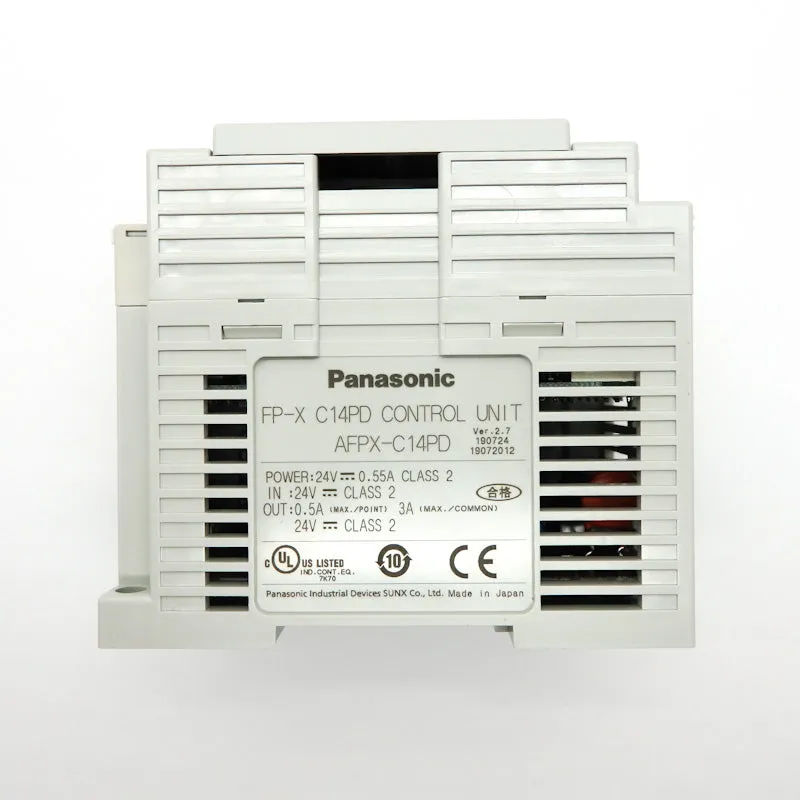

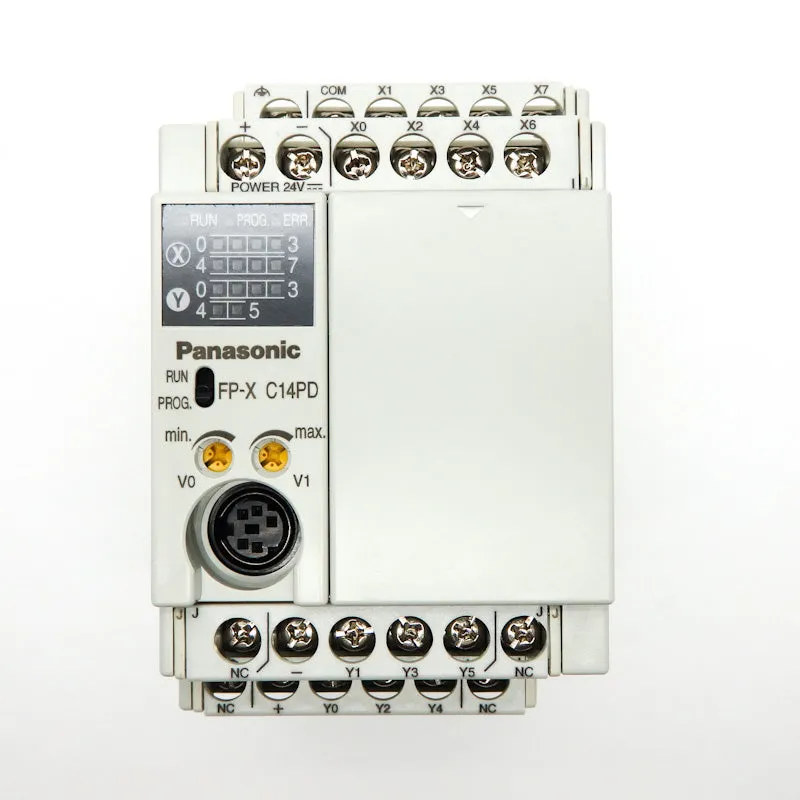

This is a Panasonic 24VDC 8mA Control Unit For FP-X Programmable Controllers AFPX-C14PD. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Communication Port Type: RS232C ; RS485
- Dimensions: 90 x 60 x 101.2 mm
- For Use With: FP-X Programmable Controllers
- Input Current: 8 mA
- Input Type: Voltage
- Memory: Built-In Flash ROM
- Memory Capacity: 16
- Mounting Type: DIN Rail Mount
- Number of Inputs: 8
- Number of IO Ports: 86
- Number of Outputs: 6
- Output Current: 0.5 A
- Output Type: Transistor NPN
- Scan Rate: 0.32 uS/step
- Series: FP-X Series
- Special Features: Bulit-In 4-Axis Pulse Output, High Capacity, High Speed
- Supply Current: 4.7 mA
- Supply Voltage: 24 VDC
- Termination: Screw
- Type: PLC
- Voltage Rating: 24
