Renogy 100 Watt 12 Volt Solar Premium Kit

Renogy 100 Watt 12 Volt Solar Premium Kit is a comprehensive and reliable solar power solution designed to meet all your off-grid energy needs. Whether you're powering an RV, a boat, or a small cabin, this kit offers a hassle-free and efficient way to harness the sun's power.

High-Efficiency Solar Panel

Equipped with a 100W monocrystalline panel, this kit ensures maximum power generation, even in low-light conditions. With a module efficiency of 18.4%, you can rely on consistent energy for various off-grid applications.

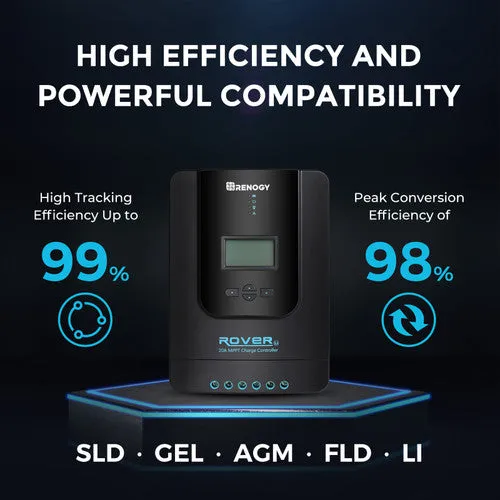

Advanced Rover 20A MPPT Charge Controller

The included MPPT charge controller maximizes your system's efficiency by tracking the maximum power point of the solar panel. This allows up to 99% efficiency in transferring power to your battery, significantly improving charging performance.

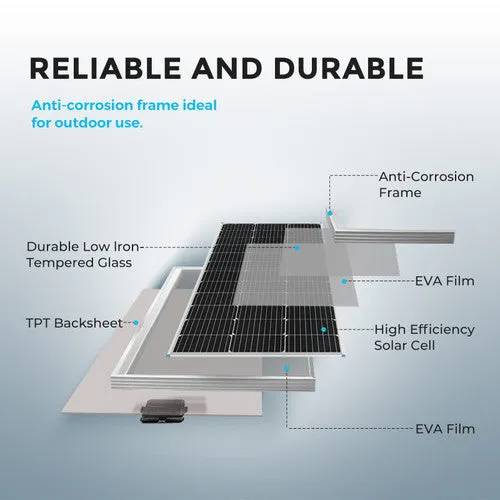

Durable and Weatherproof Design

The solar panel is built to withstand harsh outdoor conditions, with an IP65 rating that ensures protection against water and dust. This makes it ideal for outdoor adventures, offering longevity and durability.

Complete Off-Grid System

The kit includes essential components such as a 100W panel, a charge controller, mounting Z brackets, and all necessary cables for an easy, out-of-the-box setup. It’s perfect for those who want a quick and seamless installation.

Expandable for Future Needs

With the included MPPT controller, you can expand your system by adding additional solar panels to meet your growing energy needs. This makes it a future-proof solution for off-grid living.

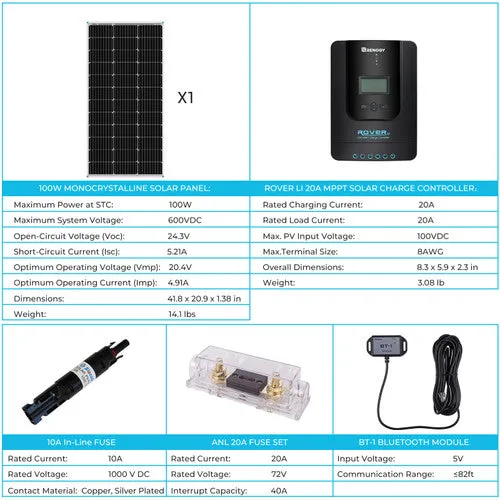

Specifications:

• Maximum Power: 100W
• Maximum System Voltage: 600V DC (UL)
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Voltage (Vmp): 20.4V
• Short-Circuit Current (Isc): 5.21A
• Optimum Operating Current (Imp): 4.91A
• Dimensions: 41.8x20.9x1.4in/1062 x 530 x 35 mm
• Weight: 14.1lbs/6.4kg

• Nominal System Voltage: 12V/24V Auto Recognition
• Rated Charging Current: 20A
• Rated Load Current: 20A
• Max. PV Input Power: 260W/12V, 520W/24V
• Max. Battery Voltage: 32V

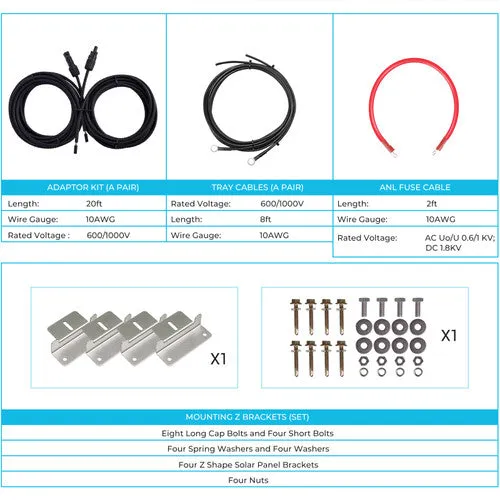

• Length: 20ft
• Wire Gauge: 10AWG
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F

• Length: 8ft
• Wire Gauge: 10AWG
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F

• Length: 2ft
• Wire Gauge: 10AWG
• Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
• Temperature: -40°F to 194°F

• Input Voltage: 5V
• Communication Range: ≤82ft
• Compatible With: All Renogy Controllers with RJ12 port
• Operating Temperature: -20℃~85℃（-4°F to 185°F）

• Rated Current: 10A
• Rated Voltage: 1000 V DC
• Contact Material: Copper, Silver Plated
• Replaceable Fuse: Cylindrical PV Fuse (10x38mm)

• Current Rating: 20A
• Voltage Rating: 72V
• Interrupt Capacity: 40A

• Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
• Four Z Shape Solar Panel Brackets: Four Nuts

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

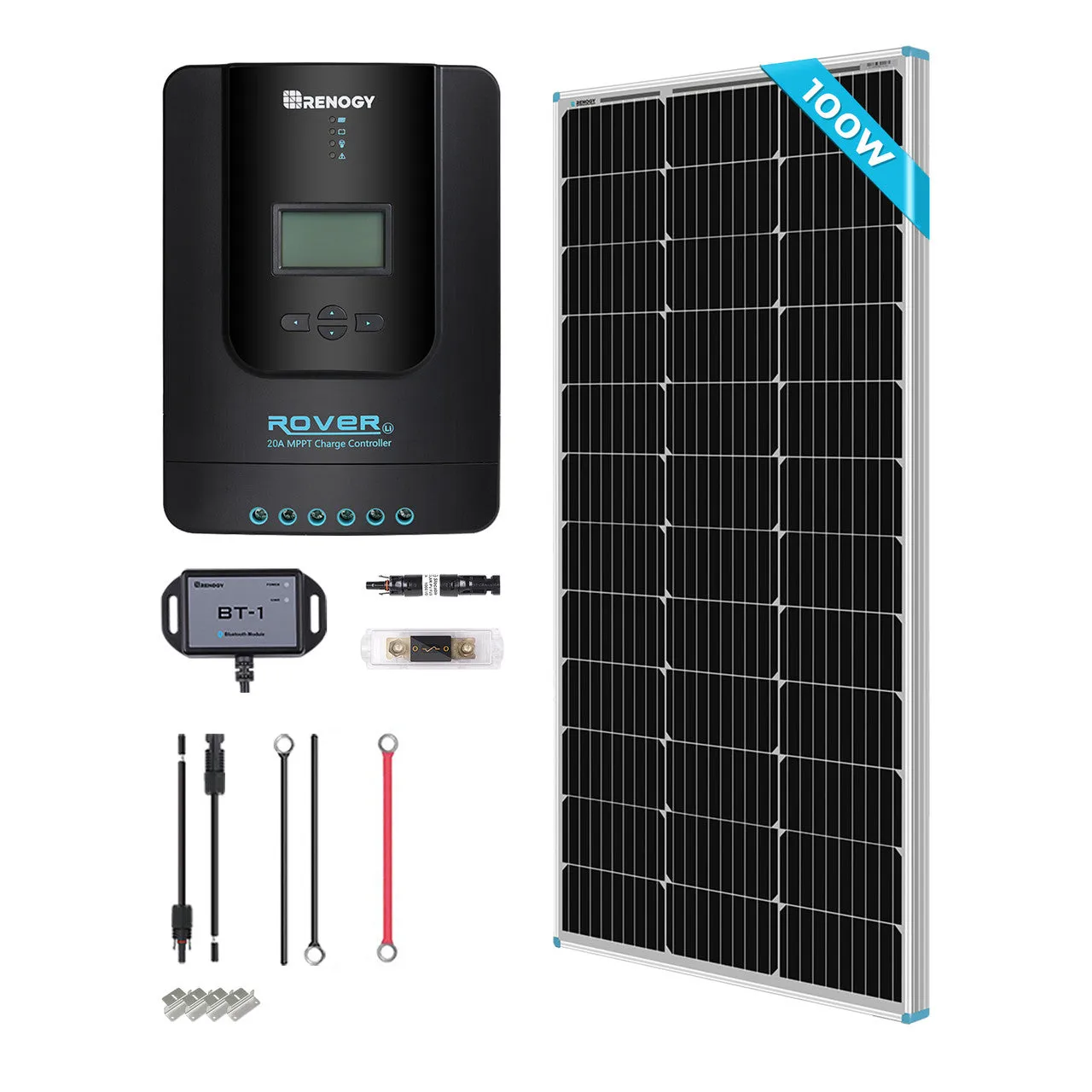

What's in the Box:

1 x 100W Mono Solar Panel

1 x Rover 20A MPPT Charge Controller

1 x 20ft 10AWG AK

1 x 2ft 10AWG Fuse Cable

1 x 8ft 10AWG Tray Cable

1 x AK/ Fuse Cable/ Tray Cable

1 x Mounting Z Brackets (Set)

1 x Mounting Z Brackets (Set)

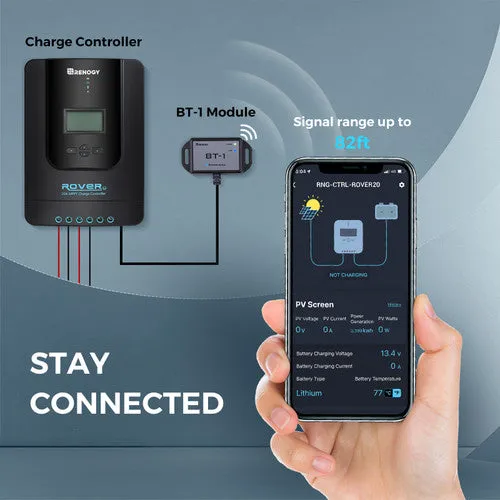

1 x BT-1 Bluetooth Module

1 x 10A In-line Fuse and 20A ANL Fuse

1 x 10A In-line Fuse and 20A ANL Fuse
