Renogy 200 Watt 12 Volt Solar Premium Kit

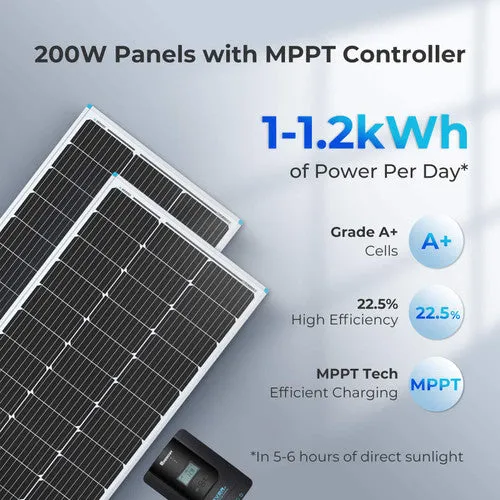

200W High-Efficiency Solar Panels

The kit includes two 100W monocrystalline solar panels that feature superior efficiency, providing consistent power even in low-light conditions. These panels are designed to last, with high weather resistance to withstand rain, wind, and snow.

MPPT Charge Controller

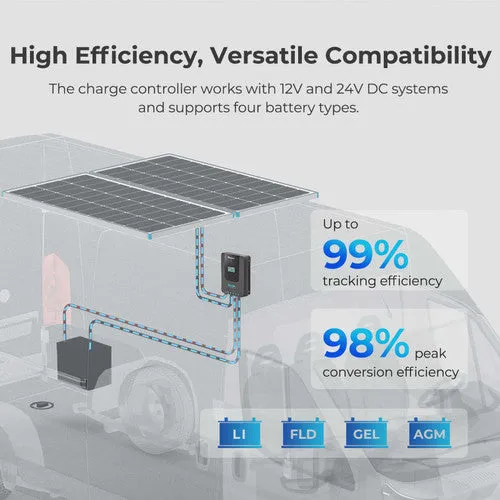

Equipped with a 20A MPPT (Maximum Power Point Tracking) charge controller, this kit ensures maximum power harvesting from the solar panels, improving efficiency by up to 30% compared to PWM controllers. It provides protection against overcharging and short circuits, enhancing battery life.

Versatile Mounting Options

The included mounting brackets and cable entry housing allow for easy installation on various surfaces like RV roofs, cabins, and boats. With pre-drilled holes on the panels, mounting is hassle-free.

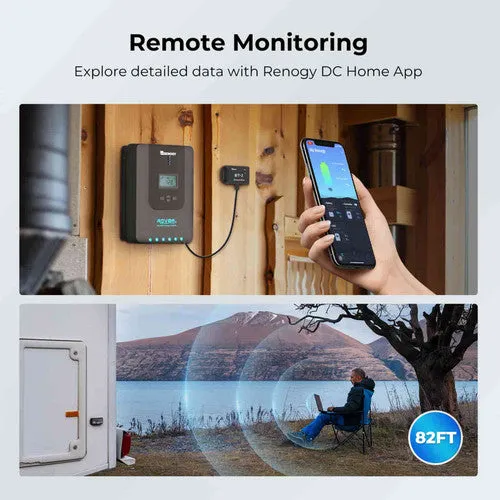

Bluetooth Connectivity

The system includes a Renogy BT-1 Bluetooth module, which allows you to monitor the performance of your system via the Renogy DC Home App. You can track power generation, system voltage, and charging status remotely through your smartphone.

Complete Solar Solution

This kit is ideal for anyone seeking an all-in-one solution for off-grid power needs. It provides the necessary cables, connectors, and mounting brackets, ensuring you have everything needed for a seamless installation.

Specifications:

• Maximum Power: 100W
• Maximum System Voltage: 600V DC (UL)
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Voltage (Vmp): 20.4V
• Short-Circuit Current (Isc): 5.21A
• Optimum Operating Current (Imp): 4.91A
• Dimensions: 41.8 x 20.9 x1.4 in
• Weight: 14.1lbs

• Nominal Voltage: 12V/24V DC Auto Recognition
• Rated Charging Current: 20A
• Rated Load Current: 20A
• Max. Battery Voltage: 32V
• Max. PV Input Power: 260W/12V, 520W/24V
• Max. PV Input Voltage: 100VDC
• Operating Temperature: -35°C to 45°C
• Max.Terminal Size: 8AWG
• Rated Load Current: 10% to 90% NC
• Overall Dimension: 8.3 x 5.9 x 2.3 in

• Length: 20ft
• Wire Gauge: 10AWG
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F

• Rating Voltage: 600/1000V
• Length: 8ft
• Wire Gauge: 10AWG
• Temperature: -40°F to 185°F

• Length and Wire Gauge: 2ft and 10AWG
• Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
• Temperature: -40°F to 194°F

• Rated Current: 10A
• Rated Voltage: 1000 V DC
• Contact Material: Copper, Silver Plated
• Replaceable Fuse: Cylindrical PV Fuse (10x38mm)

• Current Rating: 20A
• Voltage Rating: 72V
• Interrupt Capacity: 40A

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Temperature: -40°F to 194°F
• Protection Class: Class II
• Protection Degree: IP67, mated
• Rated Current: 50A

• Input Voltage: 5V
• Communication Range: ≤82ft
• Compatible With: All Renogy Controllers with RJ12 port
• Operating Temperature: - 20℃~85℃（-4°F to 185°F）

• Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
• Four Z Shape Solar Panel Brackets: Four Nuts

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

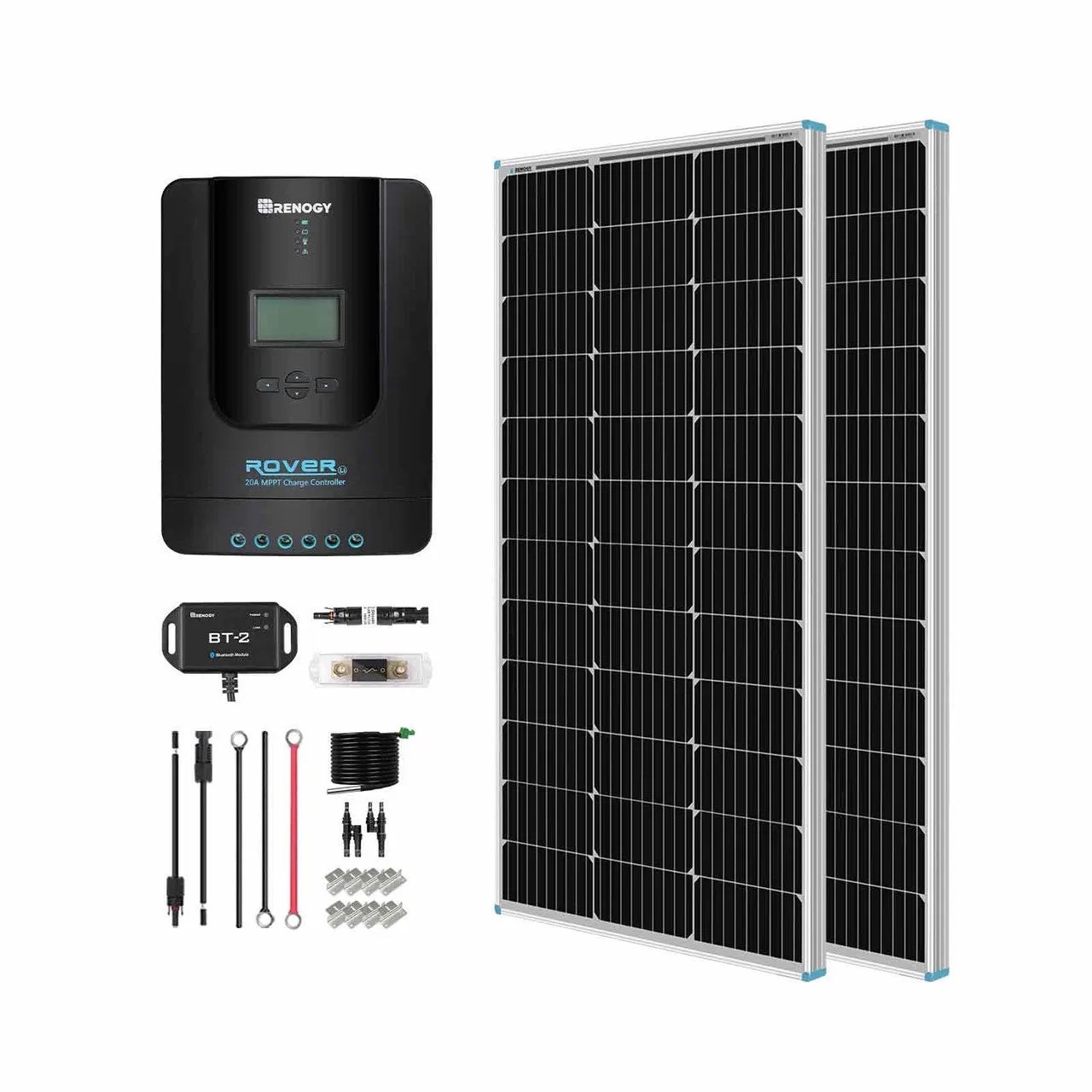

What's in the Box:

2 x 100W Mono Solar Panel

1 x Rover 20A MPPT Charge Controller 20A Ctrl

1 x 20ft 10AWG AK, 2ft 10AWG Fuse Cable, 8ft 10AWG Tray Cable

1 x AK/ Fuse Cable/ Tray Cable

2 x Mounting Z Brackets (Set)

1 x BT-1 Bluetooth Module

1 x 10A In-line Fuse and 20A ANL Fuse

1 x Solar Y Branch Connectors MMF FFM Pair
