Product Details
＋

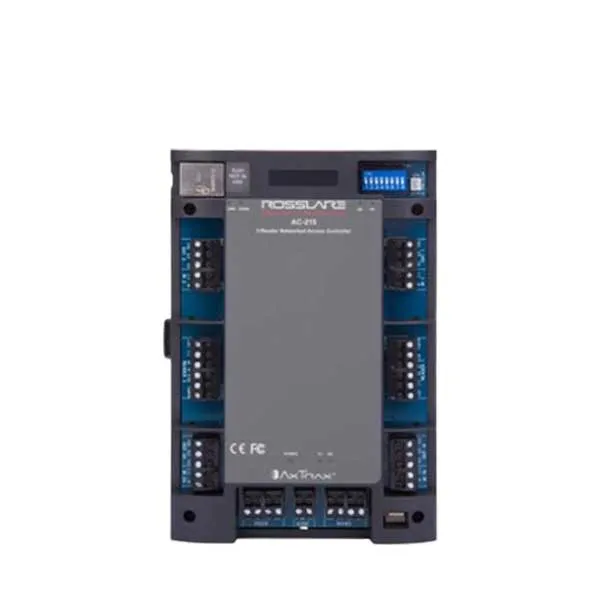

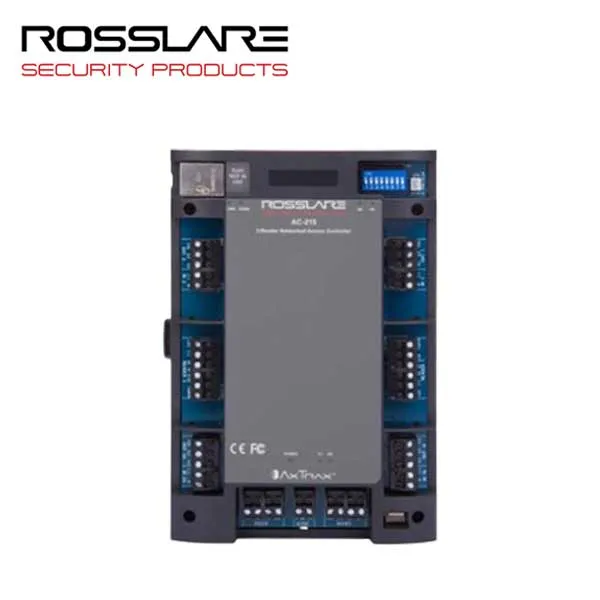

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.
Features:
- DIN Housing for DIN Rail Mounting
- Networked up to 1023 Panels
- Networked up to 4092 Doors
- Supports up to 30,000 users in off-line mode, unlimited server based capacity
- 20,000 event history entries per computer
- Multi-user authentication for high-level security
- Supports a wide range of Wiegand and PIN formats
Specifications:
| Type: | Network Control Panel / DIN Housing |
| Readers: | 2 reader ports (6-wire) Communication: Wiegand, or Clock & Data Output voltage to reader: 12 VDC (battery only: 8.8-11.8 VDC) Max. current to reader: 245 mA LED control output and Tamper Input |
| Inputs: | 4 supervised, hi-impedance, inputs Max. voltage: 5 VDC |
| Outputs: | 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC |
| Interface: | TCP / IP |
| TCP / IP: | On-board RJ-45 connector |
| Selectable Communication Speed: | 9600, 19200, 57600, 115200 bps |
| Serial Ports: | 10/100 Ethernet Port |
| Max Readers: | 2 |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Unauthorized & Access Groups: | 30,000 Unauthorized Users |
| Event Log: | 20,000 Events |
| Operating Voltage: | 12 VDC, 1.5 A from a regulated power supply |
| Max input Current: | Standby: 120 mA. Maximum: 370 mA |
| Housing: | Protective Cover & DIN Rail / Wall Mount |
| Dimensions: |
7.6 x 5.4 x 1.5 in. |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
